Name: 1200°C 2" Tube Furnace w/ Automatic Valves & Sliding Door - OTF-1200X2-ASD
SKU: 2255503

Product Details ＋

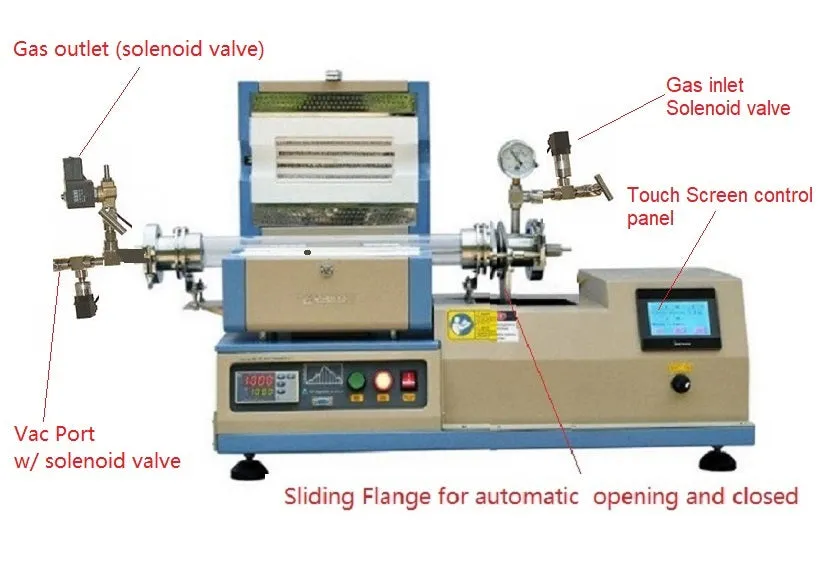

OTF-1200X-ASD is a compact split tube furnace with a max. the working temperature of 1200°C. The automatic sliding door ( flange ) is built-in to open or close the flange automatically without tightening screws. Gas inlet & outlet valves and vacuum ports are controlled by solenoid valves without manual operation. All actions are controlled by a touchscreen panel or optional PC.

SPECIFICATIONS:

Furnace Structure	Double-layer steel structure. High-purity Al2O3 fibrous insulation with Max. energy saving High-purity alumina coating on refractory ceramics for longer service life.
Power	1.2 KW
Voltage	110VAC or 220VAC (Please select the voltage in the options bar)
Max. Temperature	1200°C (<1 hour)
Continuous Temperature	1100°C ( continuous)
Max. Heating Rate	<= 10 °C/min
Heating Zone Length	8" (200mm), single zone. The following picture shows the temp. distribution across the heating zone
Constant Temp. Zone	2.3" (60mm) ( /-1°C) @ 1000 °C
Temperature Controller	Proportional–integral–derivative control (PID control) and auto-tune function Built-in Over Temperature and Thermocouple Failure Protection 30 segments programmed with ramping, cooling, and dwelling steps Default DB9 PC communication port Temperature accuracy: /- 1°C Advanced Enrutherm 3000 is option with /- 0.1oC accuracy RS485 port and software are included for PC operation
Heating Elements	Fe-Cr-Al Alloy doped by Mo
Tube Size	2'' Quartz Tubes: is included in the package. One ceramic baffle is on the right with a sliding flange
Vacuum Flanges & Vacuum Level	Left side flange is installed with gas outlet and KF25 vacuum port together with solenoid valves, which can be opened and closed by the touchscreen panel The right side flange is installed with a gas inlet with solenoid valves and a quartz sample holder with baffles. The flange is driven pneumatically to close and open the right flange ( door) without manual operation. Vacuum level: 10-2 torr by mechanical pump and 10-5 torr by turbo-pump
Pressure Measurement / Monitoring	Standard mechanical vacuum gauge measures within a pressure range of -0.1 to 0.15Mpa are included. Optional: A gas-type independent digital vacuum gauge with a wide range between 3.8x10^-5 to 1125 Torr.
Control Panel	Touch screen control panel to control all parameters, including Temperature programma Vacuum pump on/off Right flange close/open Gas inlet and outlet on/off
Dimensions	(Click Pic to see details )
Net Weight	35 Kg
Shipping Package Size	40''(L) x 30''(W) x 35''(H)
Shipping Weight	110 lbs
Warranty	One-year limited warranty with lifetime support (Consumable parts such as processing tubes and o-rings are not covered by the warranty, please order replacements at related products below.)
Compliance	CE Certified NRTL or CSA certification is available upon request at an extra cost.
Application Notes & Warning	Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.2 bars. Vacuum pressures may only be safely used up to 1000°CThe flow rate for gasses should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation.
Operation Demo Vidoe
