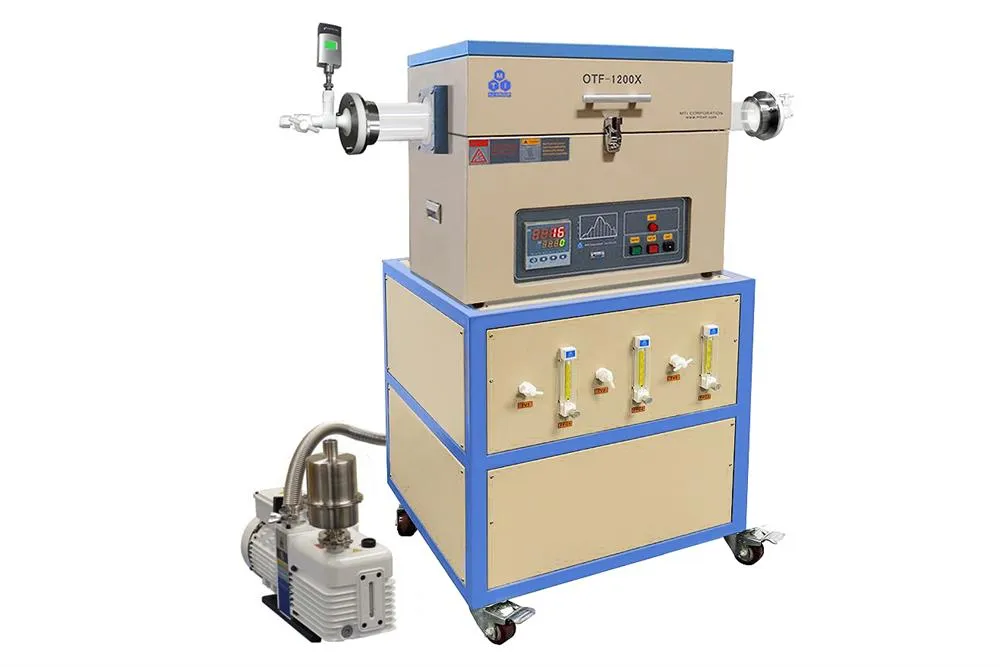

Furnace Construction
|
- Double layer steel casing with air cooling.
-
Built-in thermostat automatically runs the cooling system when the case temp. > 55°C.
- Anti-corrosive gauge to enable vacuum measurements with aggressive gases.
- Vacuum pump with cold trap prevents aggressive gases reaching the pump.
- PTFE gas mixer and flange reduce aggressive gas contact to the susceptible surface.
|
Power Consumption |
2.5 KW |
Input Voltage |
AC 208-240V Single Phase, 50 or 60 Hz |
Maximum Temperature |
1200 °C |
Continuous workingTemperature |
1100 °C |
Maximum Heating Rate |
<= 20 oC /min |
Heating Zone Length |
400 mm |
Constant Temperature Zone |
150mm ( /-1°C) |
Temperature Accuracy |
/- 1°C |
| Heating Elements |
Fe-Cr-Al Alloy doped by Mo |
Temperature Controllers
|
- PID automatic control via power control with phase angle fired, current limiting resistor.
- 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
- Please click here to learn why
- Built in PID Auto-Tune function with overheating & broken thermocouple protection.
- Over temperature protection and alarm allows for operation without attendant(s).
- /- 1 ºC temperature accuracy.
- RS485 Communications Port.
- Advanced Temperature Control (Optional)
- MTS02-Y Temperature control software kit (for YD518P series controllers) 15" laptop package is available at the options bar.
- You may upgrade the temperature controller to the which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3504 temperature controller.
|
Tube Size and Materials |
Quartz tube: OD: 80mm x ID: 75 mm x Length: 1000 mm |
|
- with ceramic coated sensor head specially designed for vacuum measurements with the presence of corrosive gases.
- Gauge is installed on the vacuum flange (right side) of the tube furnace and provides a wide measure range (10^-5 ~ 1000 torr).
|
Vacuum Sealing Flanges
|
-
with both vacuum gauge and valve.
|
Vacuum Pump
|
-
is included with max. vacuum pressure of 10E-4 torr.
- Stainless steel hose tube is included for connecting to tube furnace.
- A cold trap is included to capture corrosive material.
|
|
Flow Meter & Pressure Meter
|
-
is installed inside the mobile case to enable monitoring of gas flow rates.
|
Dimensions |
- Furnace: 550 x 380 x 520 mm
-
Bottom Mobile case: 600 x 600 x 650 mm
|
Net Weight |
~ 70 kg |
Shipping weight |
350 lbs |
Shipping Dimensions |
Two cases in one pallet: 45"x45"x35" /case |
Warranty |
One-year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings, and heating elements are not covered by the warranty, please order replacements at related products below). |
Compliance |
- CE Certified
- NRTL or CSA certification is available upon request at the extra cost
|
|
Application Notes
|
- Please click to see our typical temperature profile calibration result at various temperatures.
- .
- .
- Warning: Tube furnaces with quartz tube are designed for use with vacuum and low pressure < 0.2 bar
- Attention: A two-stage pressure regulator must be installed on a gas cylinder to limit the pressure to below 3 PSI for safe operation.
- The flow rate for gases should be limited to<200 SCCM for reducing thermal shocks to the tube
- Vacuum pressures may only be safely used up to 1000°C
|
Operation Instructions |
|
