SIMPLE TO USE: Turn Power On/Off: Hold down the right button Record Initiation: Press the left button Pause/Resume: Press the left button Stop Recording: Hold down the left button Data Synchronization: Press the right button

SENSOR CONNECTION & SETUP: The XOSS app must be downloaded from either the Apple App Store or Google Play. Your phone must have Bluetooth 4.0 or later in order to connect to active sensors nearby. To connect, press and hold both buttons simultaneously; the sensor icon will flash to indicate searching. Once the pairing is complete, the corresponding icon will stop flashing. When you are done, press the left button again to enter setting mode.

P1: Tyre Circumference Setting (mm)
P2: Metric/Imperial Unit Setting
P3: Time Zone Setting

Use the left button to select a number or option and the right button to switch between them. When setup is finished, hold down the right button to leave setting mode. XOSS utilizes GNSS technology, including GPS, Beidou, GLONASS, and Galileo satellite systems, to deliver a dependable signal and precise accuracy.

Upon activation, the GPS icon located in the top left corner will blink as the device searches for a satellite signal. Ensure that you are outdoors with an unobstructed view of the sky.

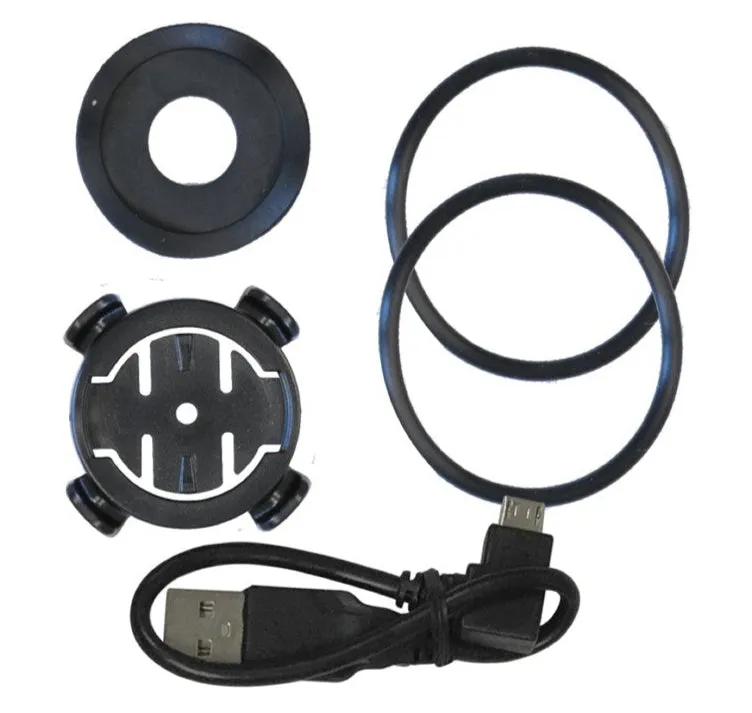

INCLUDES: Micro USB cable and bicycle mount with rubber O-rings.

MOUNT INSTALLATION GUIDE:
1. Place rubber pad on the back of mount.
2. Use rubber O-rings to secure the mount to handlebar. Cross tie the mount with the rubber O-rings.
3. Align tabs on back of computer with the mount notches, press down slightly and rotate computer 90˚ to lock it in place.

KEY FEATURES

Note: For heart rate and cadence monitoring, ANT compatible sensors needs to be installed.
