Product Details
＋
Used on Leybold Trivac D40BCS, D65BCS

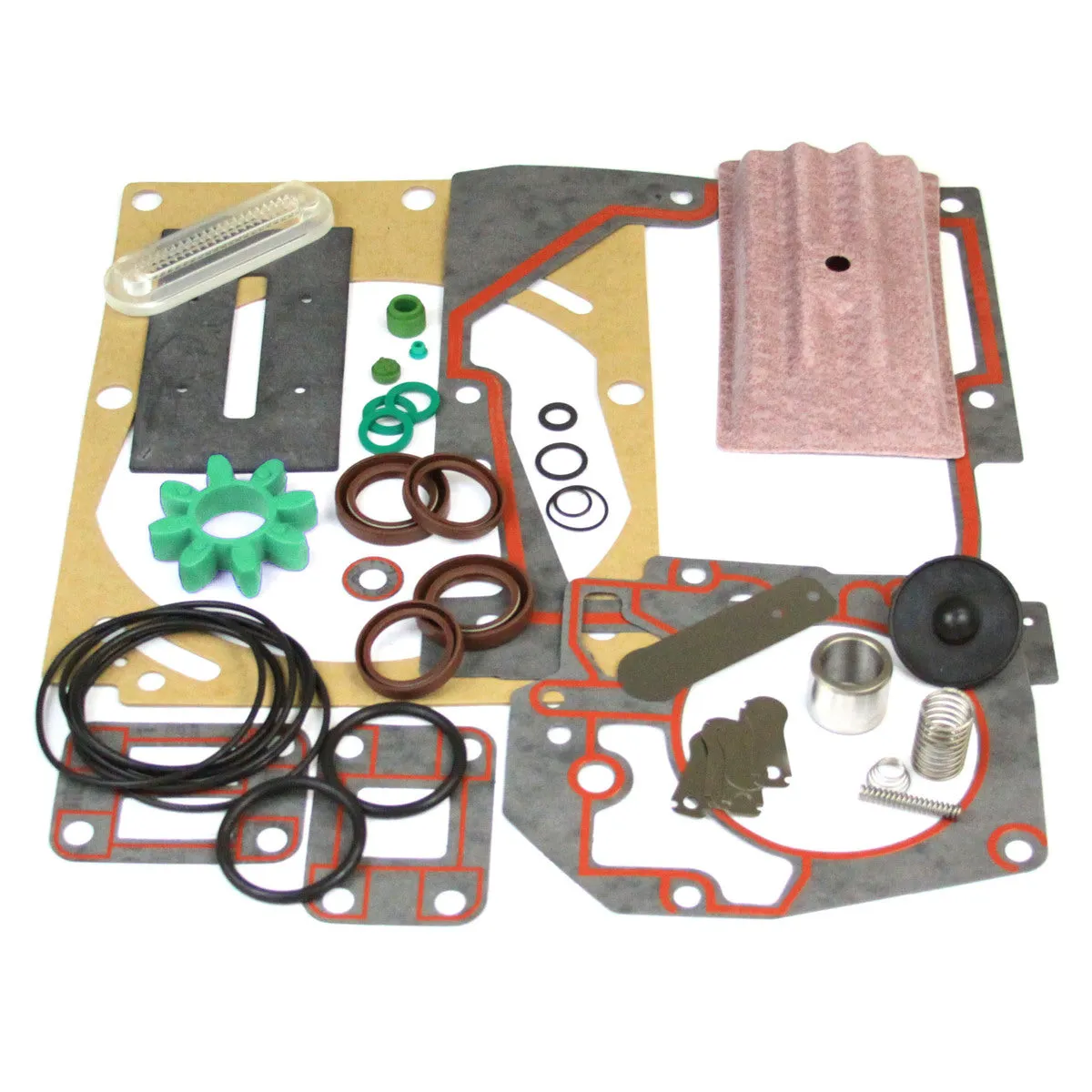

Gasket Kit includes; coupling element, O-rings, gaskets, shaft seal and other components for light maintenance
General product classifications
| Brand | Leybold |
| Family | Trivac |
| Pump models | D40BCS D65BCS |
| Category | Repair Kits |
| Subcategory | Gasket Kit |
| Country of origin | US |
| Manual page | LEYBOLD-67 |
| Part number alternatives | 19132 19132D40KIT 23L-D40/65BCS-S |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| P23955165 | Leybold Gasket, Viton, Part# P23955165 | 3 |
| P23970108 | O-ring, 12 x 1.5 mm - Viton, Part# P23970108 | 1 |
| PL23953007 | Shaft Seal, Viton - 30 x 40 x 7, Leybold, Trivac, Part# PL23953007 | 2 |
| PL20010744 | Leybold Module Gasket, Mylar, Part# PL20010744 | 1 |
| PL40175023 | Pressure Relief Valve, Leybold, Trivac, Part# PL40175023 | 1 |
| PL70120381 | O-ring, 85 x 3 mm - Viton, Part# PL70120381 | 1 |
| PL40050140 | Valve Disc, Leybold, Trivac, Part# PL40050140 | 1 |
| PL34861029 | Seal, Leybold, Trivac, Part# PL34861029 | 1 |
| PL20039131 | Sight Glass Gasket, Leybold, Trivac, Part# PL20039131 | 1 |
| PL39026014 | Leybold Demister Filter, Part# PL39026014 | 1 |
| PL23192034 | Leybold Shaft Seal, Bushing Sleeve, Part# PL23192034 | 1 |
| PL20039118 | Shaft Seal, Viton - 30 x 45 x 8 mm, Leybold, Trivac, Part# PL20039118 | 2 |
| PL20039108 | Felt Disc- Leybold, Trivac, Part# PL20039108 | 1 |
| PL20010746 | Beaded Valve Gasket, Leybold, Trivac, D40B, D65B, S40B, S65B, D40BCS, D65BCS, Part# PL20010746 | 1 |
| 20009148 | Leybold Case Gasket, Part# 20009148 | 1 |
| PL23950121 | O-ring, 68 x 3.5 mm - Buna, Part# PL23950121 | 1 |
| PL23970008 | O-ring, 15 x 2 mm - Viton, Part# PL23970008 | 1 |
| PL23970016 | O-ring, 22 x 1.5 mm - Viton, Part# PL23970016 | 1 |
| PL23970147 | O-ring, 16 x 2.5 mm - Viton, Part# PL23970147 | 1 |
| PL23970223 | O-ring, 80 x 3 mm - Viton, Part# PL23970223 | 4 |
| PL23970305 | O-ring, 10 x 3 mm - Viton, Part# PL23970305 | 1 |
| PL23970516 | O-ring, 42 x 5 mm - Viton, Part# PL23970516 | 2 |
| 23973036 | Coupling Housing Gasket, Leybold, Trivac, Part# 23973036 | 1 |
| 23973042 | Cover Gasket, Leybold, Trivac, D40B, D65B, D40BCS, D65BCS, S40B, Part# 23973042 | 1 |
| 23973044 | Gasket, Flat, Leybold, Trivac, Part# 23973044 | 1 |
| PL23973146 | Seal, Float, Leybold, Trivac, Part# PL23973146 | 1 |
| PL34861028 | Non - Return Valve, Leybold, Trivac, Part# PL34861028 | 1 |
