Product Details
＋

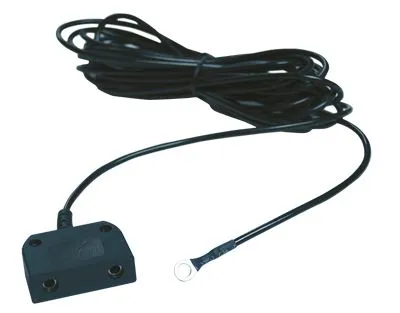

Low profile common point ground cord that can ground two wrist strap and a table.
- Common point ground cord for two wrist straps and ESD mat
- Low profile molded head with 10mm male snap
- Length: 15' Long
- 1 meg resistor for safety (available without resistor)
- Cords available with both male studs and female sockets
The CP2522 low profile ground cords are highly durable and reliable ground cords. Equipped with two standard banana jacks, the CP2522 grounds up to two operators at the same time.
The low profile, molded head has built-in 10mm male snap for a secure worksurface attachment. A 15' black ground cord terminate with a standard 1/8" (#10) ring terminal for a solid connection to ground. Also available with a 8mm ring terminal.
Meets or exceeds requirements of ANSI ESD-S20.20.
The Transforming Technologies CP2522 Specifications:
- Product Type: 15' Common Ground Cord with 10mm male snap
- Two Banana Jacks: 8" (#10) ring terminal
- For Use With: 10mm snaps
- Includes: 15' Long Black PVC Cord
- Material: PU|PVC
- Primary Color: Black
- Connector Type: Two Banana Jacks
Additional information
- Type: Common Point Ground Cord
- Snap Size: 10mm Male, 10mm Female
- Resistor: 1 meg, No Resistor
