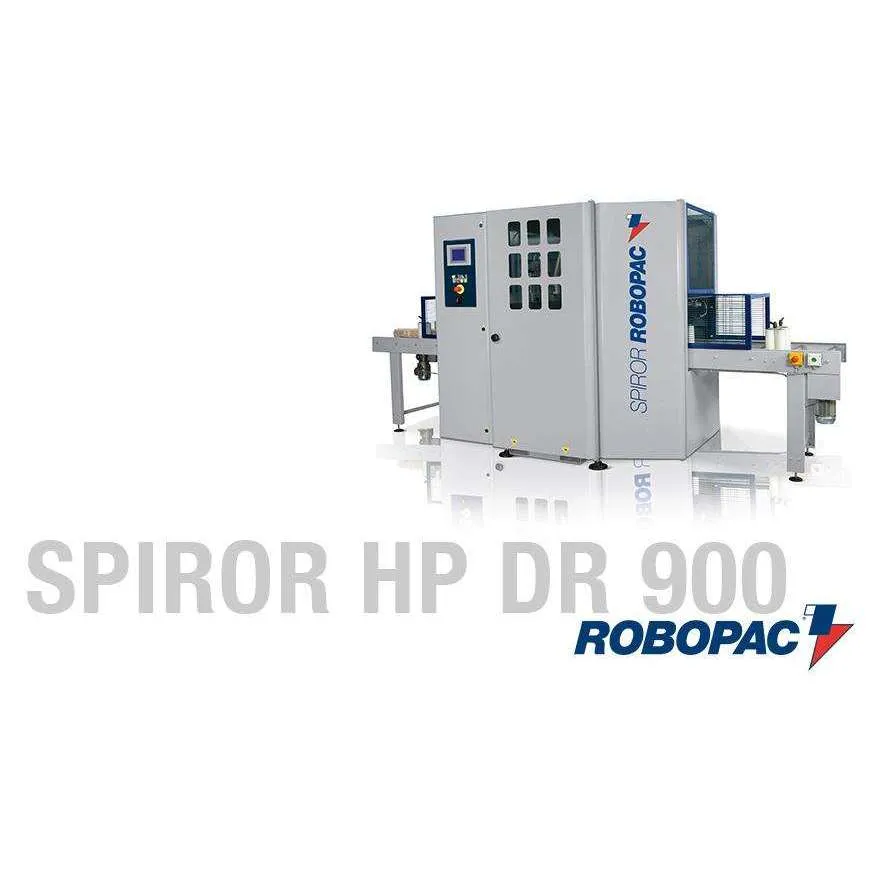

The Spiror DR series of automatic high-speed horizontal wrapping machines feature dual roll carriages to increase wrapping speed and are designed for mid-volume production. The units are ideal for bundling long, narrow products like wood molding, aluminum and plastic extrusion as well as tubing, textiles and carpet.

Safe, simple operation includes automatic film clamping and cutting. All Spirors feature constant film tensioning to improve package integrity and reduce film breaks.

Technical Data

Performance
Belt Driven Rotation	YES
Max. Rotation Speed (RPM)	130
Load Capacity
Minimum Workable Dimensions	3.5” x 3.5”
Machine Structure
Variable Conveyor Speed (ft/min)	32.81 - 164.04
Film Delivery System
Pre-Stretch	Friction Roll
Constant Film Tensioning	YES
Pneumatic Cold Cutting & Clamping Unit	YES
Film Width	5"
Core Diameter	3"
Operator Interface
Control Panel	Icon Driven Color Touchscreen
Utility Requirements
Installed Power	3 HP
Power Supply Voltage	480 V 3Ph 60Hz
Working Pressure	90 PSI
Safety Features
Emergency-Stop Push Button	YES
CE Compliant	YES
Safety Guard Door & Switch	YES

Features

Auto Film Clamp

Highly reliable, dual rod cutting system fully automates the wrapping process.

Auto Film-Cutting Device

Automatically cuts film at end of wrap cycle, saving operator an estimated 30 seconds per load.

Pneumatic Top Platens

Infeed and outfeed units automatically adjust to ensure proper stabilization of the product. The length of the run can be adjusted manually, if needed, to compensate for products of varying height.

R-Connect® Ready

Able to install R-Connect® remote monitoring software immediately.

Available Options

Extended Warranty

Manual or Automated Operation

Manual Top Pressure Unit Infeed & Outfeed

Automatic Top Pressure UnitInfeed and Outfeed
